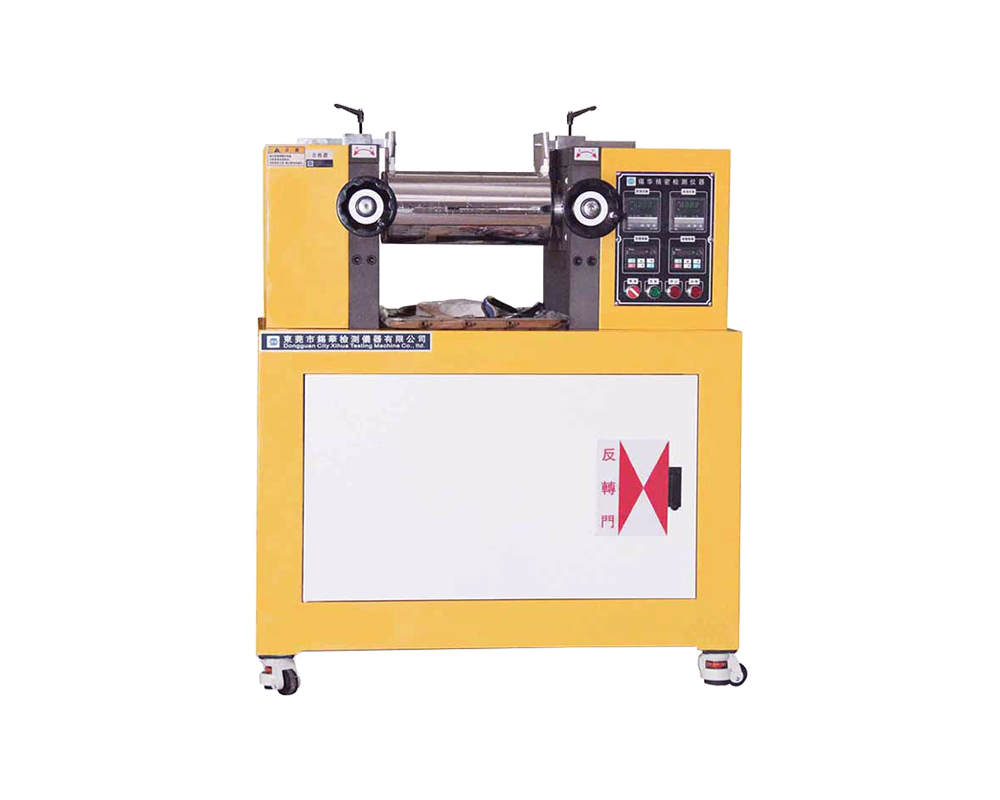

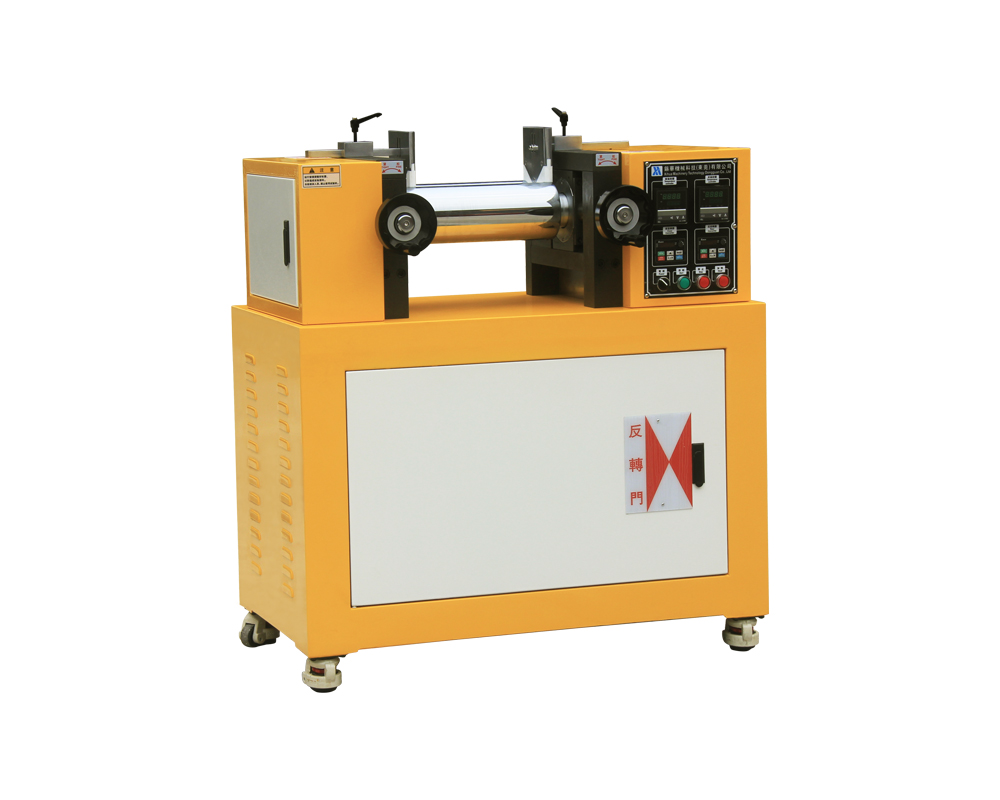

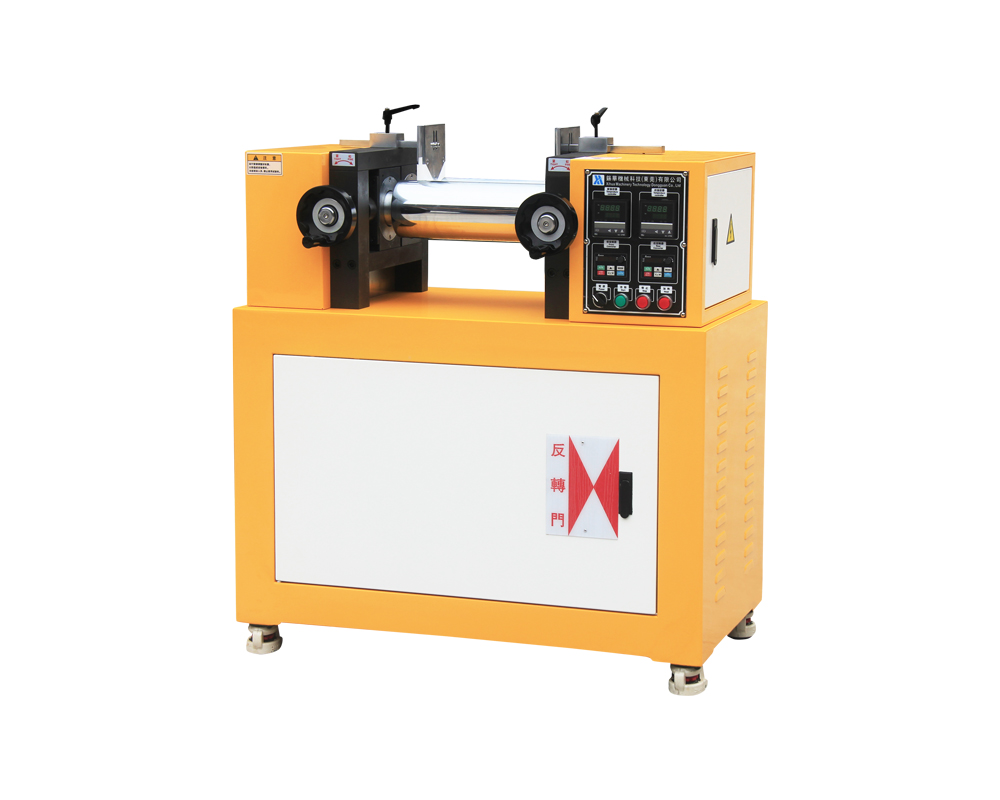

XH-401开炼机 XH-401 Two Roll Mill
简介 Introduction：
适用于橡胶、塑胶原料、颜料、色母粒等高分子聚合物混炼分散。
Suitable for mixing and dispersing polymers such as rubber, plastic raw materials, pigments, masterbatches, etc.
应用范围： Applications
新产品研发、配方优化 ：New product development and formula optimization
产品质量控制和原材料检测 ：Product quality control and raw material testing
加工性能研究和工艺优化：Processing performance research and process optimization
配方材料共混性能检测 ：Formulation material blending performance test
教学科研应用：Teaching and research application
技术参数 (Technical Parameters)：
型号 Model No. | XH-401A | XH-401B | XH-401C |
辊筒转速 Roller speed | 定速 Fixed speed | 单调频 Single frequency inverter | 双调频 Dual frequency inverter |
控制方式 Control Mode | 按键式 PID control | ||
辊筒尺寸 Size of roll | 120×350mm或指定(or customized) | ||
加热方式 Heating Mode | 电加热 electrical heating | ||
调距方式 Roll gap adjustment | 手动调节或电动调距 Manual or electric gap adjustment | ||
安全装置 Safety device | 反转停止 Reverse stop | ||
电机功率 Motor Power | 0.75kw或指定×1台 0.75kW or customized*1 | 0.75kw或指定×2台 0.75kW or customized*2 | |
体积 Volume（W×D×H） | 1100mm×560mm×<1150mm | ||
重量(kg) Weight | 400kg | 450kg | |
电源 Power Supply | 3∮，AC380V | 3∮，AC380V | 3∮，AC380V |
特殊型号可根据客户要求设计制作。
Special models can be designed according to customers’ requirements.
